5×5 Sunsynk Solar Hybrid System

Description

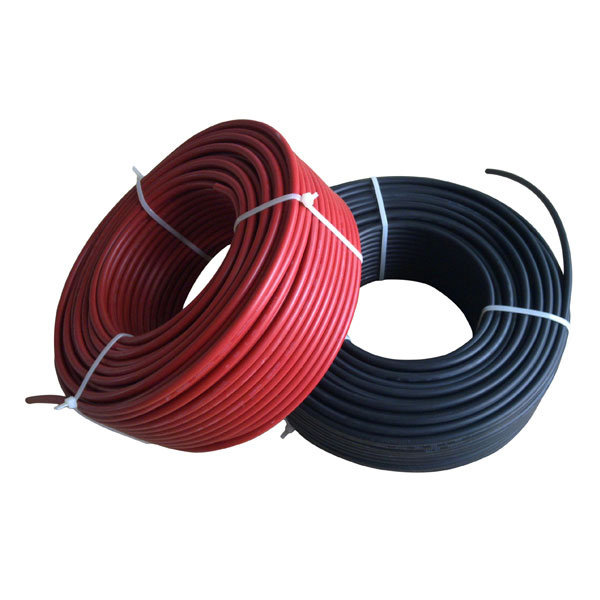

Straton Solar are offering clients in the Nelson Mandela Bay area only the complete supply and installation of their 5×5 Solar Hybrid Package which consists of: a Sunsynk Sun 5.5k Hybrid inverter, Earth Neutral Bridge for AC Protection, 10 x Tier 1 545W PV Panels, all Aluminium Mounting Structure, PV String wiring, connectors including surge protection and earthing, Battery disconnect fuse switch, LFP Wall Mount Sunsynk Battery 5.32 kWh 51.2V, AC installation for single phase hybrid inverter including surge protection (3kW to 6kW), Certificate of Compliance and completion of smart meter application forms all for R172 467.93 including VAT.

Terms are 20% with order, 60% of the total on the day that equipment is delivered and the balance on completion. Standard warranties apply and remote access and monitoring is included.

• Final pricing subject to Exchange Rate, Supplier Pricing and on-site inspection.

Contact us for pricing in areas OUTSIDE of Nelson Mandela Bay.

The 5×5 Package in the News: https://mypr.co.za/ditch-the-4×4-this-solar-5×5-is-much-cheaper-and-has-a-much-higher-roi/

Sunsynk 5.5kW Hybrid Inverter

• Inputs:  PV solar, AC grid power, Batteries, Generator
• Output voltage: 220/230/240Vac
• Continuous power: 5000W
• Backup power: 5000W
• DC: 48V
• Battery charger: 120A
• Transfer time: <= 10ms
• Battery charger adjustable for battery bank size and type. Can charge Lead Acid and Li-ion batteries. Li-ion battery charging self-adapts to BMS
• Solar Input:  Max power input – 6500W, Max V DC input – 370V (100V~500V), Max current input – 11A + 11A, MPPTs – 2, MPPT Range – 125~425V
• Multi-core processor design and advanced MPPT control
• High reliability and response speed
• Programmable export
• Works parallel on or off-grid
• Single-phase operation
• Multiple operating modes: Grid-tie only, Hybrid, Off-grid, Battery only
• Additional features:  AC couple – For additional PV input, 6 stages time of use settings
• ​IP65
• Meter Port (Ecco model only)

Sunsynk Battery LFP Wall Mount 5.32kWh 51.2V

• Cell Type: Lithium Ferro Phosphate (LifePO4 or LFP)
• Nominal Operating Voltage: 51.2V
• Nominal Capacity: 100Ah / 5.12kWh
• Depth of Discharge (DoD): 100%
• Usable Capacity: 5.12kWh
• Packing: 1P16S
• IP Rating: IP40
• Minimum Operating Voltage: 44.8V
• Maximum Operating Voltage: 57.6V
• Standard Charging Current: 50A
• Max. Continuous Charging Current:  50A
• Standard Discharging Current: 50A
• Max. Continuous Discharging Current: 100A (1C, 25°C ± 2°C)
• Max. Pulse Discharging Current: 200A (2C, 30S, 25°C ± 2°C SOC≥40%)
• Standard Charging Method: 0.5C CC to 57.6V, CV at 57.6V till current is 0.05C
• Min. Operating Temperature (no derating): Charging: 0°C / Discharging: -20°C
• Max. Operating Temperature (no derating): Charging: 50°C / Discharging: 55°C
• Operating ROH: 20% ~ 80%
• Storage Temperature: -20 ~ 50°C
• Self-discharging rate: ≤5% (25°C 50% SoC)
• SoC @ end of product line: 40%
• Insulation Resistance: >100MΩ
• Voltage Difference in each module: ≤20mV
• Inner Resistance of single Cell: 0.34 ± 0.05mΩ (fresh cell 30 ~ 40% SoC)
• Altitude Below: 2000m
• Weight: 48kg
• Dimensions: 440 x 530 x 132mm (not include connector, MSD and other parts)
• Expected Life @ 25°C: Greater than 10 years if used as per warranty terms

Sunsynk use battery cells that are produced by CATL, which produce the cells for leading automotive brands such as Tesla Automotive and BMW. We consider these to be the most efficient cells available on the current market, we want your system to function efficiently for as many years as possible.
